Description
WeighPoint® Integrator
Thayer Scale’s newest range of instrumentation, WeighPoint®, combines Thayer Scale’s historical expertise in continuous weighing with the latest technology, connectivity, advanced algorithms and functions. The new generation, WeighPoint®instrumentation system transforms weight and flow rate measurement and control into real-time operational intelligence.

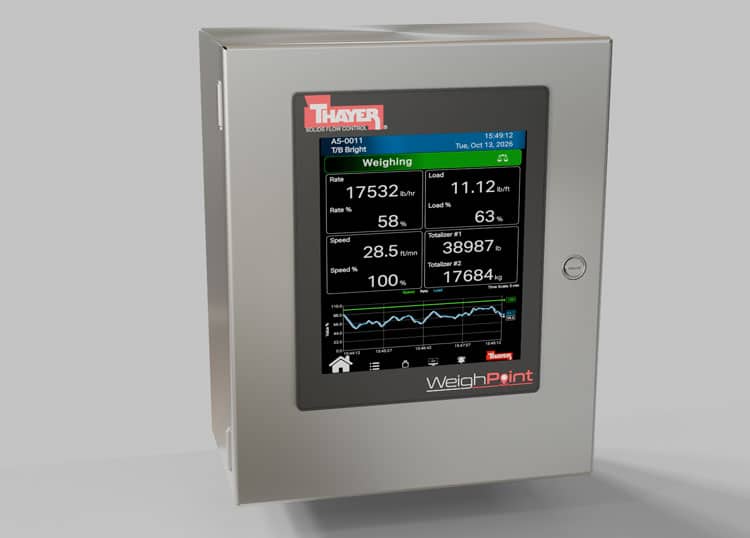

The WeighPoint® Integrator is a dual-processor, touchscreen-enabled solution designed for continuous operation in harsh environments. The panel-mountable touchscreen HMI provides an easy-to-use interface to the company’s deep library of algorithms and functions. It is the most robust conveyor and belt-weighing integrator on the market.
WeighPoint® is packed with features. Its modular design allows for flexible installation planning. It is available with a bright 8” touch-screen display providing high visibility even in harsh environments. Alternatively, the operator interface can be accessed remotely via PC or mobile device. There are a wide range of communications options, including MODBUS/TCP, Ethernet/IP and Profinet. The WeighPoint® system includes a field-mounted scale module that provides high-resolution digitizing of load and speed. Communication from the scale module to the main module is via CANBus to ensure high data fidelity. The dual-processor main unit ensures high display performance while offloading real-time control functions to a separate processor core.
The WeighPoint® integrator is designed for use with Thayer Scale’s versatile range of RF belt scales and Weigh belt feeders for optimal weighing accuracy and performance.
WeighPoint® Innovative Capabilities
- Intuitive, graphical touch screen operator interface for improved navigation & operation
- Configurable display settings for optimal data visibility and reporting, including live trends
- Dual processor design for improved performance and more stable communications
- Latest processor and hardware technology to minimize the risk of future obsolescence
- Enhanced suite of proprietary weighing and control algorithms
- Available in multiple configurations to support preferred controls architecture
- Designed to support Industry 4.0 developments including predictive maintenance and cloud analytics
- Enhanced security management capabilities
WeighPoint® Integrator Key Design Features
- Programming Parameter “Tool Tips”
- Comprehensive User-Configurable Diagnostic Logs & Reports
- Multiple configurations for flexible installation planning
- Easy-to-use interface simplifies navigation to Thayer Scale’s deep library of algorithms and functions
- Bright 8-inch (203.2 mm) color touch-screen display (1024 x 768, XGA) provides high visibility.
- Operating temperature range from -20 to 60 C (-30 to 70 C storage)
- 4 mm, Teflon™ free laminated safety glass that can be augmented with a plastic anti-glare screen protector provided for user installation
- Dual-processor main unit ensures high display performance while offloading real-time control to a separate processor core.
- User access to minimally dampened data to optimize process control
- Supports up to four load cells (strain gauge or LVDT)
- Supports incremental encoder, ring gear or accelerometer velocity sensors
- Field-mounted scale module at the weighing equipment provides high-resolution digitizing of Load and Speed Communication
- 24-bit A/D converter
- Real-time operating system
- Expansion modules for additional I/O capability
- Multiple fieldbus interface options for seamless connectivity to your host supervisory control system
- Automatic system log entries (event, power, error)
- Calibration event historian
- Alarm event historian
