| Thayer Product Family |
| PF-S |
| Approximate Feed Rate Range lbs/hr (@ 50 lb/ft³) |
| 20 – 30,000 |
| Standard Hopper Liquid Capacity (ft³) |
| 1.0 – 25 |
| Trough Liquid Capacity (ft³) |
| 1.0 – 2.5 |
| Available Screws Diameter (in) |
| 1″ – 1.5″ – 2″ – 3″ – 4″ – 6” |
| Examples of Materials Handled |
| GRAPHITE POWDER, ZINC OXIDE, KAOLIN CLAY, GUAR GUM, PLASTIC ADDITIVE, QUICK LIME, PIGMENT, COPPER POWDER, RUBBER GRANULES, WHEY POWDER, DIATOMACEOUS EARTH, CALCIUM CARBONATE, SALT, TiO₂, STEARATE, BORAX, COCOA POWDER, FLOUR, RICE, PP PELLETS, SUGAR, TOFFEE CHIPS |

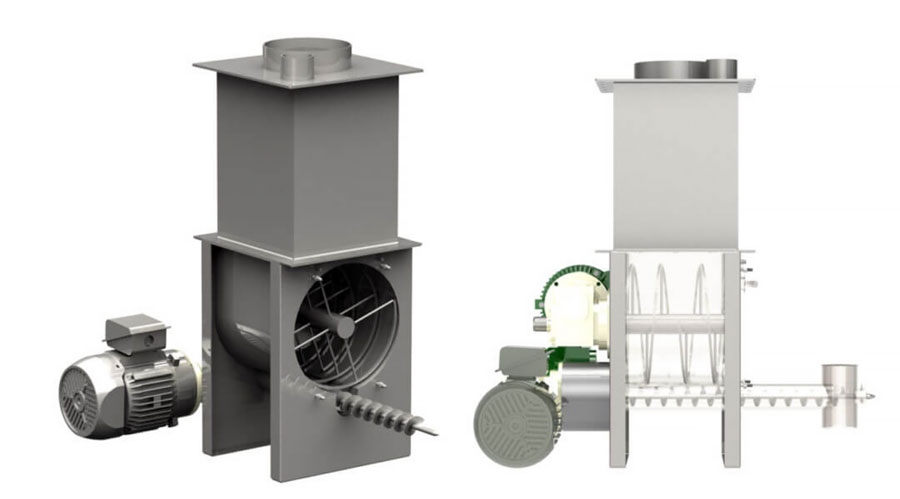

Volumetric Feeders for Powders
Volumetric feeders designed for difficult-to-feed powders.
Thayer Scale’s family of volumetric powder feeders feature our patented “U-Trough” hopper and feed section for the first practical and economical means for metering difficult powders.
The geometry of the trough and agitator effectively de-aerate and contain the powder on initial fill to help prevent flooding. An independently driven agitator maintains optimum material conditioning while screw speed can vary to control flow rate.
Material does not build up within the trough or within the continuous screw tube, preventing blinding or erratic feed. This combination along with a vast selection of screw sizes and types allows material to be fed with an accuracy of ±1.0 to 2% of set rate.
Industry Applications
Suitable for difficult-to-feed powders.
- FOOD INGREDIENTS: Whey Powder, Cocoa Powder, Flour, Rice, Sugar, Almonds, Toffee Chips, Salt, Spices
- RUBBER & PLASTICS: Rubber Granules, Crumb Rubber, PP Pellets
- MINERALS & CHEMICALS: Graphite, Zinc Oxide, Kaolin, Quicklime, Copper Powder, Diatomaceous Earth, Calcium Carbonate, TiO₂, Borax
- POLYMERS & ADDITIVES: Guar Gum, Plastic Additives, Pigments, TSP, Milk Additive, Additive Powders, Stearates, Microcel, Impact Modifier, Advawax, Calcium Stearate
Get a Quote for a Volumetric Powder Feeder
Core Technologies
🔩 Thayer Scale Differential Screw
Thayer Scale’s Differential Screw technology delivers consistent, pulse-free material flow. Custom screw lengths and designs support a wide operating range for both heavy and light-density materials.
🌀 “U-Trough” Hopper & Agitator
The first practical AND economical means for metering difficult powders. An independently driven agitator maintains optimum material conditioning while screw speed can vary to control flow rate. The U-shaped trough and agitator combination effectively de-aerates and contains powders.
🔩 Compound Flight Feed Screw
Optional patented “compound flight” feed screw can be used with most materials to downwardly extend the operating range of the feeder by a factor of 10 (typically).
🔄 Integrated Material Agitation Options
Prevents flow issues like bridging, funnel flow, adhesion, and cohesion for consistent material feeding.
Key Benefits
of Thayer Scale’s Volumetric Powder Feeders
🌀Precise, Reliable Feeding
Screw feeders enable precise and reliable feeding of cohesive, easily aerated and difficult to control powders.
🎯 Extended Operating Range
Feeds from a few grams per minutes up to 10s of 1000s of pounds/hour.
🧼 Easy To Clean
Breaks down completely in under one minute for quick, thorough sanitation. Built from durable stainless steel for long-term, trouble-free performance. Sanitary construction option also available.
🧱 Built to Survive
Unlike lightweight designs made for short-term convenience or scale sensitivity, our feeders are engineered for long-term durability, without compromising accuracy. Hazardous area modifications options available.
📐 Flexible Mounting Options
Supports floor-mounted, rotating, stationary, wheeled, forklift-based, or suspended installations.
